Catnic CG70/100 1200mm

SKU

cg7012-S

£53.17 £44.31

Product Information

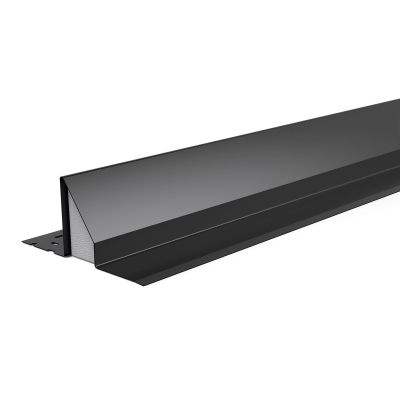

Catnic CG70/100 lintel with a 1200mm length, suitable for cavity widths 70-85mm
Features internal insulation to reduce cold bridging and improve thermal efficiency
Duplex corrosion protection ensures long-lasting performance on site
Built-in DPC simplifies installation and protects cavity integrity
Perforated steel baseplate with plaster key for strong render adhesion
Please note: Lead times are indicative due to steel shortages; our sales team will update you if affected

Details

The Catnic CG70/100 1200mm insulated steel lintel is engineered for professionals requiring reliable and thermally efficient support in cavity wall construction. Designed to maximise energy performance by minimising cold bridging, this lintel suits builders, contractors, and site managers working on structural openings where durability and compliance are essential. Please note that lead times may vary due to current steel shortages, and our sales team will provide updates as needed.

Application

This lintel is primarily used in cavity wall builds with inner leaf thicknesses between 100 and 115mm, cavity widths of 70 to 85mm, and outer leaves from 100 to 105mm. Its internal insulation reduces thermal bridging, helping meet building regulations on energy efficiency. The integrated damp proof course (DPC) protects the cavity from moisture ingress, while the built-in plaster key ensures a secure base for plaster or render finishes. It’s ideal for new builds and refurbishment projects where reliable lintel performance and thermal standards are required.

Dimension

Length: 1200mm (approx. 47¼ inches)
Inner leaf: 100 - 115mm
Cavity width: 70 - 85mm
Outer leaf: 100 - 105mm

Material

Galvanised steel with duplex corrosion protection coating
Insulation layer integrated within lintel structure
Perforated steel baseplate with plaster key slots

Type

Insulated steel lintel for cavity wall applications

More Information

More Information
MPN	CG70/1001200
Type	Cavity Wall Lintels
Loading	Standard Duty
Wide Inner Leaf	125-140mm
Cavity Size	70-85mm
Length	1200mm
Weight	7.200000
Manufacturer	Catnic
Sap Id	cg7012-S
Unit of measure	each
