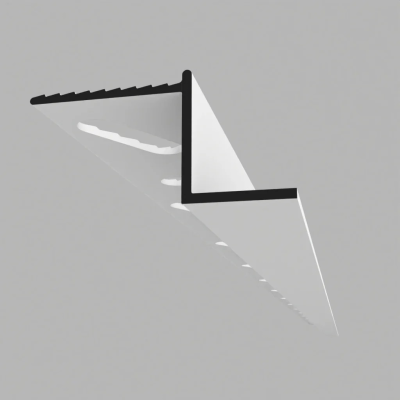

QIC RD12 Drylining Trim RAL 9010 (White) 3000mm

SKU

QIC_RD12

£8.29 £6.91

QIC RD12 Drylining Trim RAL 9010 (White) 3000mm is available to buy in increments of 10

Product Information

QIC RD12 Drylining Trim RAL 9010 (White) 3000mm

Details

Application

All items are provided as standard in White – RAL 9010. If you require a different finish, please get in touch (prices may vary).

Type RD trims are used to create horizontal or vertical reveal details where there are areas of dry lining, suspended ceilings, door frames, floor skirting, window frames and many other architectural features. The products are designed for use
only with 15mm boards. Subject to some bending limitations, type RD trims can be factory curved both on plan and in section.

Product Information

Supplied in 3000mm lengths, extruded from architectural grade aluminium alloy to BS 1474. Pre-punched with diagonal fixing slots and holes in the plastering fin suitable for fixing by drywall screws. The standard finishes are either white polyester powder coating to RAL 9010, 20% Gloss, or unpainted for onsite painting/spraying. QIC cannot accept any responsibility for the painted finish of products supplied unpainted.

Non-standard lengths, factory curving and alternative factory applied finishes are available to special order.

Technical Details

Designed specifically for use as part of a conventional dry wall, partition or ceiling system with either single or multiple layers of plasterboard. Framework can be of metal stud, timber or other suitable medium provided that the structural requirements are met. Vertical studs should never be greater than 600mm apart. Trims are designed to create aesthetic appeal within dry lining systems and are not intended to improve structural performance. Construction depends upon the type of trim being used and typical application examples are shown on the data sheets. Trims should always be supported by structural members, with additional framing provided where necessary. Double layers of plasterboard will result in greater rigidity. Trims should always be backed by a layer of plasterboard and never fixed directly in contact with the structural framing. The use of additional layers of plasterboard may be necessary to achieve certain designs.

More Information

More Information
Manufacturer	QIC Trims
Sap Id	QIC_RD12
Availability	Geographical restrictions and/or extended lead times may apply for this product. If you can confirm the delivery postcode with us we’ll be happy to advise at the time of order..
