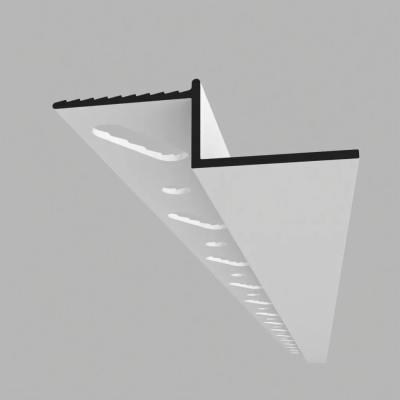

QIC R20 Drylining Trim RAL 9010 (White) 3000mm

SKU

QIC_R20

£7.91 £6.59

QIC R20 Drylining Trim RAL 9010 (White) 3000mm is available to buy in increments of 25

Product Information

QIC R20 Drylining Trim in RAL 9010 white, measuring 3000mm (9ft 10in) for extended runs.
Designed for precise horizontal and vertical reveals around suspended ceilings, door frames, window reveals, and skirting.
Manufactured from architectural grade aluminium alloy with pre-punched fixing slots for quick, secure installation.
Suitable for use with single or multiple layers of plasterboard on metal or timber framing.
Items supplied in white powder-coated finish; unpainted options and custom sizes available on request.

Details

The QIC R20 Drylining Trim in RAL 9010 white is a specialist aluminium reveal trim designed for professional drylining applications. It is perfect for builders, contractors and site managers looking to achieve crisp, accurate reveals around ceilings, window frames, door openings, and skirting. Supplied in 3000mm lengths, this trim offers excellent rigidity and a clean finish to enhance the appearance of plasterboard partitions and ceilings.

Application

This trim is used to create defined horizontal or vertical reveal details where dry lining meets architectural features such as suspended ceilings, door and window frames, or floor skirting. It can be bent on-site within certain limits or factory curved to suit complex layouts. The R20 trim is compatible with metal stud or timber framing systems, supporting single or multiple plasterboard layers. It provides an aesthetic finish rather than structural support and should always be fixed onto plasterboard, never directly to framing.

Dimension

Length: 3000mm (9ft 10in)
Profile size: 41mm x 10mm

Material

Architectural grade aluminium alloy, extruded to BS 1474
White polyester powder coating, RAL 9010, 20% gloss (standard finish)

Type

Drylining reveal trim

If a different finish or size is required, non-standard lengths, factory curving and alternative coatings can be supplied to special order. Please note that unpainted trims are available for onsite finishing, but QIC cannot accept responsibility for the painted finish in these cases.

More Information

More Information
Manufacturer	QIC Trims
Sap Id	QIC_R20
Availability	Geographical restrictions and/or extended lead times may apply for this product. If you can confirm the delivery postcode with us we’ll be happy to advise at the time of order..
