QIC CH01 Ceiling Trim RAL 9010 (White) 3000mm

SKU

QIC_CH01

£13.22 £11.02

QIC CH01 Ceiling Trim RAL 9010 (White) 3000mm is available to buy in increments of 1

Product Information

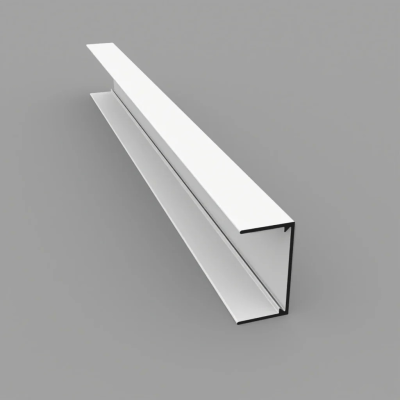

QIC CH01 Ceiling Trim finished in White (RAL 9010) with dimensions 20 x 38mm, length 3000mm (7ft 10in).
Designed for neat perimeter detailing where cut metal ceiling tiles meet walls, partitions or upstands.
Extruded from architectural grade aluminium alloy for durability and strength on site.
Compatible with standard hold down wedges and clips to securely retain ceiling tiles.
Non-standard lengths, factory curving, and alternative finishes available on request.

Details

The QIC CH01 Ceiling Trim in RAL 9010 white is a specialist perimeter trim designed for contractors and site managers working with metal ceiling tile systems. Its robust aluminium construction and precise profile make it an excellent choice for delivering crisp, professional finishes where ceiling tiles meet walls or partitions. Please note, trims are supplied in standard 3000mm lengths and can be customised with factory curving or alternative finishes on special order.

Application

This ceiling trim is primarily used to create clean, defined edges on suspended ceiling systems featuring metal, mineral fibre, GRG, plasterboard, or rigidised mineral wool infill tiles. It incorporates a channel to accommodate hold down wedges and clips, ensuring tiles remain securely in place. The trim can be factory curved to fit concave or convex walls and can also be shaped into column rings, providing flexibility for complex architectural details.

Dimension

Profile dimensions: 20 x 38mm (0.79 x 1.5 inches)
Length: 3000mm (7ft 10in)

Material

Architectural grade aluminium alloy extruded to BS 1474
Finished with white polyester powder coating (RAL 9010, 20% gloss) or chromate etch primer for on-site painting

Type

Ceiling trim for suspended metal tile systems

This trim is engineered to support the weight of ceiling infill tiles with a significant safety margin, but it is not designed to carry additional loads such as light fittings or air conditioning units. Where extra imposed loads are present, independent support should be provided. For improved aesthetics and sound insulation, a bead of silicone mastic can be applied between the trim and the wall. Always fix perimeter trims backed by wall boarding material and avoid direct contact with structural framing.

More Information

More Information
Manufacturer	QIC Trims
Sap Id	QIC_CH01
Availability	Generally available in 2 working days.
