Catnic CG70/100 3300mm

SKU

cg7033-S

£205.38 £171.15

Product Information

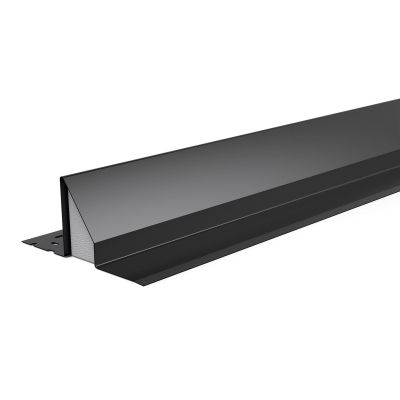

Catnic CG70/100 lintel, 3300mm (10ft 10in) length, suited for cavity widths 70-85mm (2¾"–3¼")
Internal insulation maximises thermal efficiency and reduces cold bridging on structural openings
Duplex corrosion protection ensures long-term durability in demanding environments
Built-in damp proof course (DPC) simplifies installation and cavity maintenance without damage risk
Perforated steel baseplate with plaster key slots ensures strong plaster adhesion for a clean finish
Please note: Steel shortages mean lead times are approximate; our sales team will update you if delays occur

Details

The Catnic CG70/100 3300mm steel lintel is engineered for builders and contractors requiring a reliable, thermally efficient solution for cavity walls with internal insulation. This lintel combines corrosion resistance with practical features that speed up installation and provide lasting performance on structural openings.

Please note: Due to current steel supply constraints, lead times are indicative only. Our sales team will inform you promptly if your order is affected.

Application

Ideal for use in cavity wall construction where internal insulation is specified, this lintel minimises cold bridging and helps meet thermal performance requirements. It’s suitable for load-bearing openings, such as window and door heads, within cavity widths of 70 to 85mm (2¾" to 3¼"). The integral DPC protects against moisture ingress while allowing easy cavity cleaning without damaging the damp proof barrier.

Dimension

Length: 3300mm (10ft 10in)
Inner leaf thickness: 100-115mm
Cavity width: 70-85mm (2¾"–3¼")
Outer leaf thickness: 100-105mm

Material

High-quality steel with duplex corrosion protection for enhanced durability
Perforated steel baseplate with integrated plaster key
Built-in damp proof course (DPC) membrane

Type

Steel lintel with thermal insulation properties for cavity wall construction

More Information

More Information
MPN	CG70/1003300
Type	Cavity Wall Lintels
Loading	Standard Duty
Wide Inner Leaf	125-140mm
Cavity Size	70-85mm
Length	3300mm
Weight	41.250000
Manufacturer	Catnic
Sap Id	cg7033-S
Unit of measure	each
