Catnic CG70/100 2700mm

SKU

cg7027-S

£130.06 £108.38

Product Information

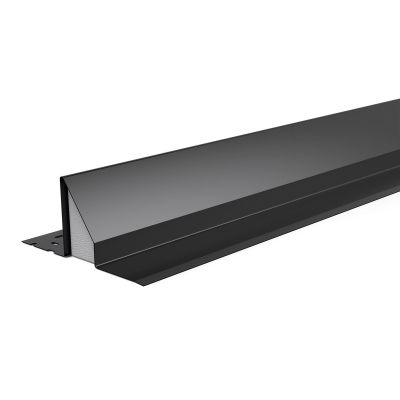

Catnic CG70/100 insulated steel lintel, 2700mm length suitable for cavity walls
Built-in internal insulation to reduce cold bridging and improve thermal efficiency
Duplex corrosion protection ensures long-lasting durability on site
Integrated DPC simplifies cavity construction and prevents damp issues
Built-in plaster key with staggered slots for secure plaster adhesion
Note: Lead times may vary due to steel shortages; our team will update you if your order is affected

Details

The Catnic CG70/100 2700mm steel lintel is engineered for builders and contractors requiring a reliable, insulated solution for cavity wall construction. Its combination of internal insulation, corrosion resistance, and integrated damp-proof course makes it ideal for structural applications where thermal efficiency and durability are priorities. Please note that due to ongoing steel shortages, lead times are approximate and subject to change; our sales team will keep you informed about your order status.

Application

This lintel is specifically designed for use in cavity walls with an inner leaf thickness of 100-115mm, cavity width of 70-85mm, and outer leaf thickness of 100-105mm. It provides a strong structural support above openings such as windows and doors while minimising thermal bridging thanks to its internal insulation. The built-in DPC protects against moisture ingress and simplifies site installation by eliminating the need for separate damp-proof layers. Its plaster key ensures a secure finish, making it a practical choice for both new builds and refurbishment projects.

Dimension

Length: 2700mm (approx. 8ft 10in)
Inner Leaf: 100 - 115mm
Cavity: 70 - 85mm
Outer Leaf: 100 - 105mm

Material

Galvanised steel with duplex corrosion protection
Internal insulation layer to reduce heat loss
Integrated damp-proof course (DPC)

Type

Structural steel lintel with insulation and built-in DPC

More Information

More Information
MPN	CG70/1002700
Type	Cavity Wall Lintels
Loading	Standard Duty
Wide Inner Leaf	125-140mm
Cavity Size	70-85mm
Length	2700mm
Weight	27.000000
Manufacturer	Catnic
Sap Id	cg7027-S
Unit of measure	each
