Catnic CG70/100 1800mm

SKU

cg7018-S

£83.12 £69.27

Product Information

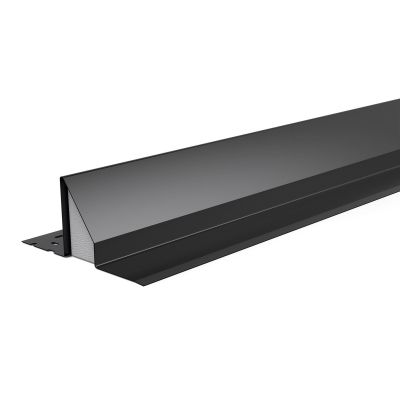

Catnic CG70/100 steel lintel, 1800mm (5ft 11in) length
Designed for internal insulation to reduce cold bridging and improve thermal efficiency
Duplex corrosion protection for enhanced durability on site
Built-in damp proof course (DPC) simplifies installation and cavity maintenance
Includes built-in plaster key with staggered slots to ensure strong plaster adhesion
Note: Due to steel shortages, lead times are approximate; our sales team will inform you of any delays.

Details

The Catnic CG70/100 1800mm steel lintel is engineered specifically for builders and contractors seeking a reliable, thermally efficient solution for structural openings. Its integrated insulation and corrosion protection make it an excellent choice for projects where durability and minimising thermal bridging are priorities. Please note, due to current steel shortages, lead times may vary and are not guaranteed.

Application

This lintel is ideal for use in load-bearing walls with cavity widths from 70 to 85mm and inner leaf thickness between 100 and 115mm. It is designed to maximise internal insulation, reducing cold bridging and improving overall thermal performance in masonry construction. The built-in DPC streamlines installation and ensures the cavity remains clean and dry, while the plaster key provides a secure base for plaster finishes.

Dimension

Length: 1800mm (5ft 11in)
Inner leaf: 100 - 115mm
Cavity width: 70 - 85mm
Outer leaf: 100 - 105mm

Material

High-quality steel with duplex corrosion protection
Perforated steel baseplate with integrated insulation and DPC

Type

Steel lintel with built-in insulation and damp proof course

Important: Due to steel shortages, lead times are indicative only. Our team will provide updates if your order is impacted.

More Information

More Information
MPN	CG70/1001800
Type	Cavity Wall Lintels
Loading	Standard Duty
Wide Inner Leaf	125-140mm
Cavity Size	70-85mm
Length	1800mm
Weight	13.500000
Manufacturer	Catnic
Sap Id	cg7018-S
Unit of measure	each
